P 22-02 Cut-Size Sheeter

Product Description

The P 22-02 is a flexible cut-size sheeter (2 pockets) for versatile converting of copy paper or loose leaves with optional inline ream wrapper (CSW 25 or CSW 30), that converts cut-size paper with sizes ranging from A4 to A3 (8 1/2 in x 11 in up to 11 in x 17 in). Further options are flexo ruling for loose leaves, A5 (long grain) & more.

Reliable and efficient production line for all common sizes - from A4 up to A3 (8 1/2 in x 11 in up to 11 in x 17 in) and knife loads up to 160 gsm
High efficiency due to easy handling
Constant high quality products
Allows running up to 4-pockets wide reels on a 2-pockets sheeter
Production speed up to 550 m/min.
Small footprint & fast installation

Appropriate for...

Paper converters
Stationery manufacturers

Download a brochure

Parts

Maintenance

Upgrades

Product Features

High Efficiency

The P 22-02 has a production speed of 550 m/min. and allows running up to 4-pockets wide reels on a 2-pockets sheeter.

Product Quality

The direct drive cross cutter with optional cut-to-register ensures cutting with highest precision.

Range of Options

A lot of options are available to increase the productivity of a 22-02 sheeter including web edge control for minimizing trim waste, a turning unit in front of wrapper for reams in A3 sizes or wrapping systems for different demands.

Easy Operation

This sheeter is quickly installed and easy to run.

	Metric	Imperial
Paper reel Diameter (max.)	1400 mm	55 in
Paper width (max.)	960 mm	37.8 in
Working width cross cutter (max.)	520 mm	20.5 in
Paper weight	min. 40 gsm max. 160 gsm
Core diameter - mech. self clamping or - hydr. Clamping	70 - 190 mm	2.75 in - 7.5 in
Production speed (max.)	550 m/min. / 1800 ft/min.
Cutting frequency (dep. On cut-off length) (max.)	2000 per minute
Cut-off length min. max.	200 mm 395 mm	7.9 in 15.5 in
Cutting tolerance	+/- 0,15 mm	0.006 in
Sheet count (max.)	1500 sheets
Ream height min. max.	10 mm (or 100 sheets) 127 mm	0.4 in (or 100 sheets) 5 in
Exit cycles (max.)	10 per minute
Reams (max.)	20 per minute

Different unwind systems for any demand
In-line operation with printing press possible
Fiber-free cutting with highest precision
Direct drive
Fast and easy change-over of sizes on sheeter and on wrapper

Web edge control for minimizing trim waste
Turning unit in front of wrapper for reams in A3 sizes
Wrapping systems for different demands
A5 size (long grain)
Flexo ruling for loose leaves

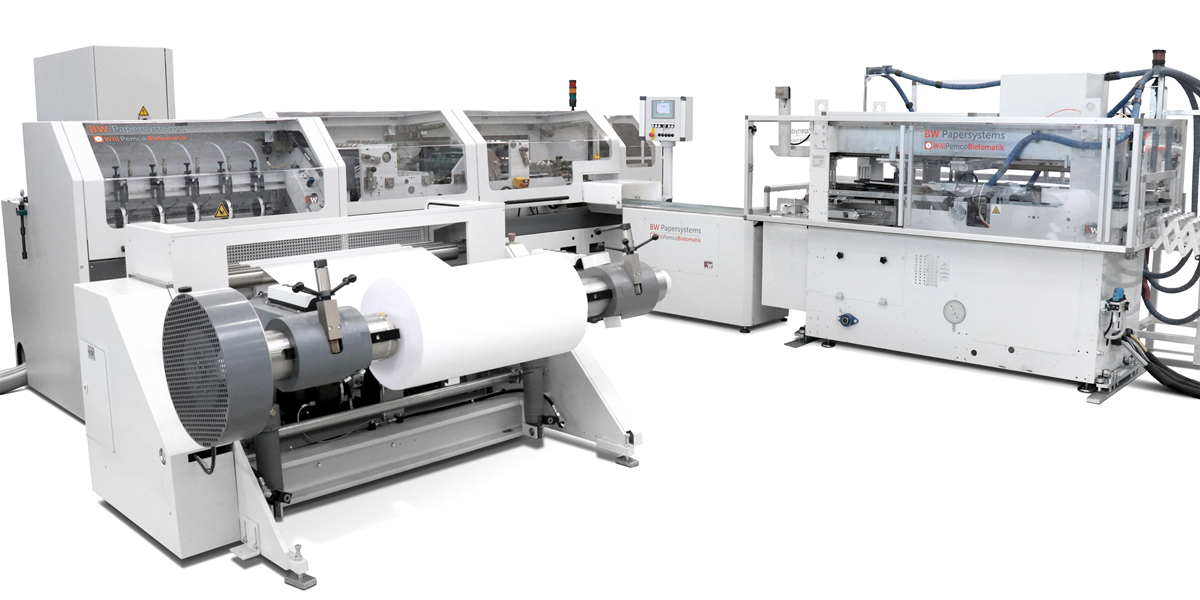

WillPemcoBielomatik P22-02 Cut Size Sheeter with CSW 25 Ream Wrapper

A small, flexible and efficient busy bee – the WillPemcoBielomatik P 22-02 cut-size sheeter runs at 550 m/min. with up to 20 reams of A4 copy paper per minute. Its design allows to run up to 4-pocket wide rolls on this 2-pocket sheeter. Options like A5 or flexo ruling for loose leaves make this sheeter even more versatile for small paper converters or stationery manufacturers.

Watch Video
