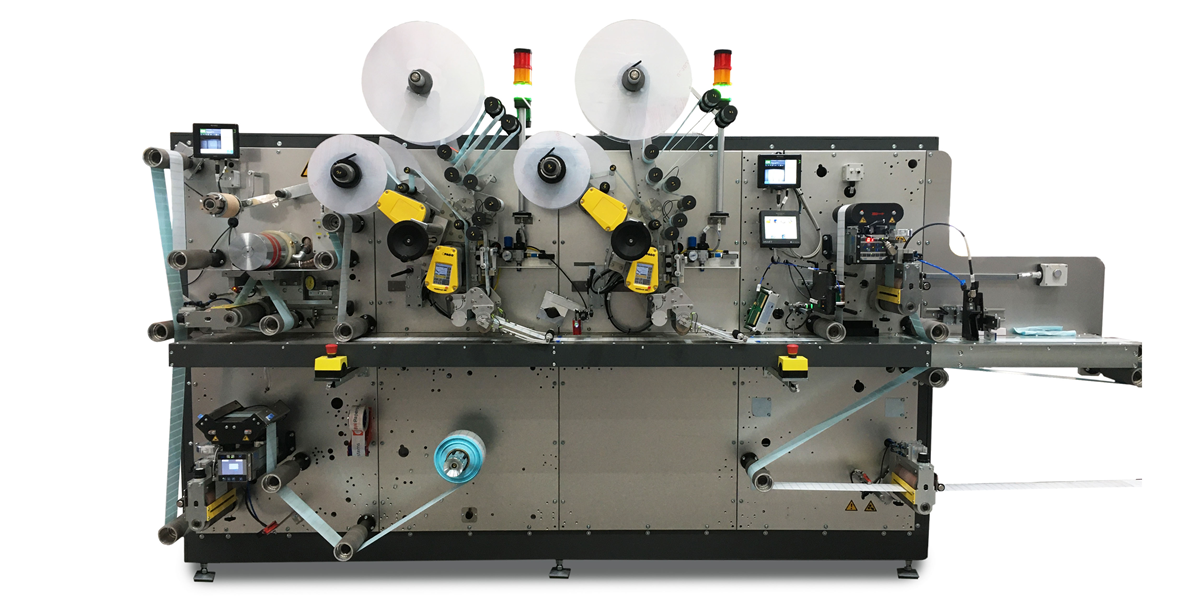

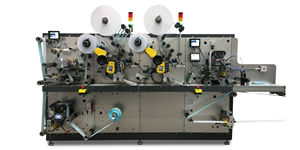

Qualifier RFID Label Testing and Replacement Machine

Product Description

Today many applications demand rolls of RFID labels without any defects. To enhance efficiency, BW Papersystems offers a machine which automates the exchange of bad labels with good labels at rolls of finished products.

The Qualifier is especially useful at environments where high safety and quality standards are requested, for instance healthcare and pharma, where 100% reliable products are mandatory.

Like other BW Bielomatik RFID machines, the Qualifier is user friendly, as it is easy to install, operate and maintain.

Features:

  • Detection of defective products, removal and replacement from a golden reel
  • Production speed up to 60 m/min / 197 ft/min
  • Qualification based upon RFID test or camera inspection
  • High process stability
  • Very low maintenance cost
  • 165 mm / 6.5 in. web width
  • Integration of a nonstop rewinder is possible
Product Features

Your choice for a 100% good RFID label/inlay solution.

Automated Label Exchange

Automates the exchange of bad labels with good labels at rolls of finished products.

Safety and Quality

Ensures high safety and quality standards in industries where 100% reliable products are mandatory.

Operator-Friendly

The Qualifier is user friendly, as it is easy to install, operate and maintain.

  • Technical Data
  • Product Details
  • Options
ImperialMetric
Web width max.6.5 in.165 mm
Production speedmax197 fpm60 mpm
Smart Label/Wet inlay distancemin.0.1 in.3 mm
Smart Label/Wet inlay size - width
min.-max.1 in. - 6.30 in.25.4 mm - 160 mm
Smart Label/Wet inlay size - lenghtmin.-max.0.5 in.-8 in.12,7 mm - 203,2 mm
Smart Label/Wet inlay size - pitchmin.-max.0.6 in. - 8.1 in15,9 mm - 206,4 mm
Production volumemax.1000 Smart Label/Wet inlay per minute


Qualifier RFID Label Testing and Replacement Machine

Compare With

Please contact us for more information.

Please contact us for more information.
