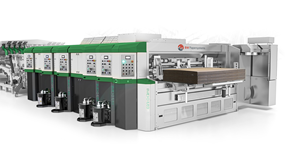

ServoPro Rotary Die Cutter

Product Description

  • Based on the proven MarquipWardUnited product line
  • Built for versatility: heavyweight and lightweight
  • No gear train to maintain. No gear backlash. No oil, sealed from production dust
  • Modern control platform
  • Ultra heavy-duty die cut system
  • Modern user-friendly HMI system
  • State of the art maintenance system
Download a brochure
With the acquisition of the ServoPro we have notably reduced the set up time and also increased the productivity of the machine both in quality and quantity. - Luca Lazzaroni, CEO of Icierre Pack, Italy
Product Features

Versatility

Designed for versatility. Built for heavyweight and lightweight boxes.

Ultra heavy-duty die cut system

Designed for today’s market needs, we have upgraded bearing capacities, journal strength, and drum stiffness.

Inside Printing

The option to include one or multiple inside print units for single-pass inside printing is available on the ServoPro.

Control System

The ServoPro features a free-standing pedestal for superior ergonomics. PC-based controls are organized, consistent, and arranged by frequency of use with user-friendly and intuitive operator interfaces.

  • Technical Data
  • Product Details
  • Options
  • 16.32 ServoPro RDC - 1676 mm x 3251 mm (66” x 128”)
  • 16.28 ServoPro RDC - 1676 mm x 2870 mm (66” x 113”)

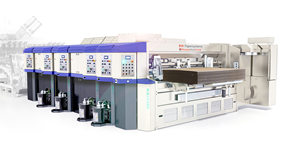

ServoPro Rotary Die Cutter

Feed Section
The ServoPro Rotary Die Cutter utilizes belts to provide 400% more sheet contact than rollerstyle feeders. Belts maintain lineal speed throughout belt life and eliminate sheet marking by contacting sheets before acceleration. With the variable stroke option, the servo-driven belt lifter allows to extend the control of larger size sheets in the belt conveyor, reducing the required crush of the sheets in the feed rolls.

Print Unit
The ServoPro features a truly direct drive servo system—directly coupled impression cylinder, print cylinder, and anilox roll motors. Angled control panel provides a convenient level for machine operation and a better visibility of the split line during the machine opening / closing. Quick disconnect fittings for convenient and intuitive connection of the hoses for inking and wash-up.

Inside Print
The option to include one or multiple inside print units for single-pass inside printing is available on the ServoPro. This reduces production time on inside print orders and improves quality compared to dual-pass inside print.

Die Cutter
The die cutter offers a simple, ultra-robust system. An increase in the size of the journals results in a nearly four-fold increase in journal strength. Designed for today’s market needs, we have upgraded bearing capacities, journal strength, and drum stiffness. The ServoPro includes the Shark Anvil Trimming System, offering “on the fly” anvil cover trimming.

Controls System
The ServoPro features a free-standing pedestal for superior ergonomics. PC-based controls are organized, consistent, and arranged by frequency of use with user-friendly and intuitive operator interfaces. Manuals are easily accessible on machine console. The ServoPro offers integrated simple to understand diagnostics with high definition illustrations and drawings.

  • Up to 7 print units
  • Inside-the-Box print units
  • Graphics Package
  • IR/UV Dryer
