Doublefacer CoolVac Upgrade

Application

Applicable to MarquipWardUnited Doublefacer CoolVac

Description

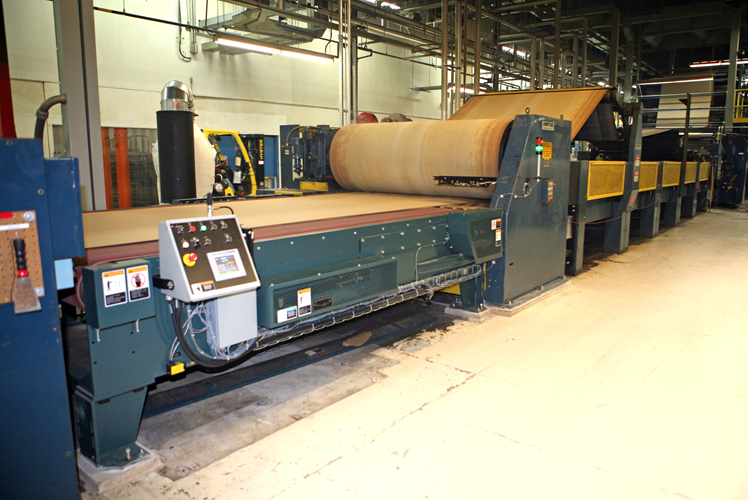

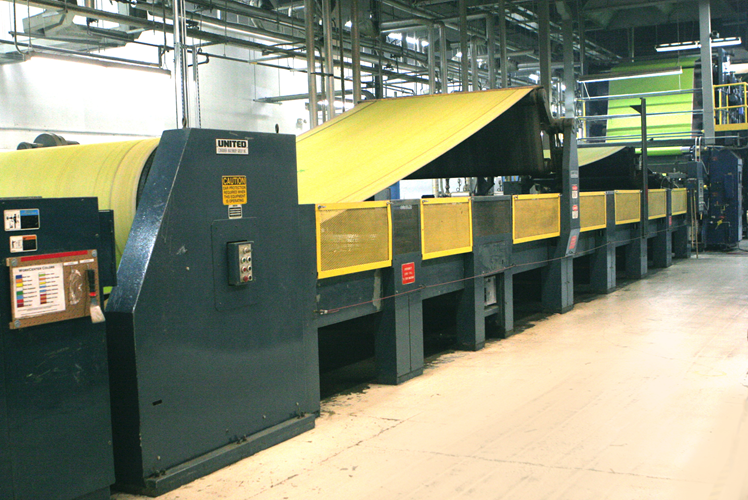

MarquipWardUnited CoolVac Upgrade takes vacuum drive technology and incorporates it into your existing equipment. The Vacuum Traction Section (VTS) is placed downstream from the existing hot plate section in place of the current lower pulling section. The upper belt is relocated upstream to allow full unobtrusive potential of the VTS.

• Remove existing traction section
• Relocating the drive of the existing double backer
• Moving the top belt drive drum over the exit of the hot plates
• Shortening the top belt (in many cases replacement will be recommended)
• Install Cool-Vac Vacuum Traction Section

Benefits

• Vacuum Pulling Technology
• Vacuum aids in drying the board
• Pulls from the bottom so crush from the pulling section is eliminated
• Gives a clear view of the board prior to the shear
• Removes heat and moisture from the board. Board can be converted and/or shipped sooner
• Reduced warp improves conversion productivity
• Reduced web weave can reduce slitter trim
