TIP 030-0462 Siemens PLC, motors/drives and HMI upgrade

TIP_030-0462_Siemens PLC and Drive Upgrade

Machine Model for Improvement

Pemco packaging machine Model 34, 34HS, 37, 37HS, 38.

Description of Improvement

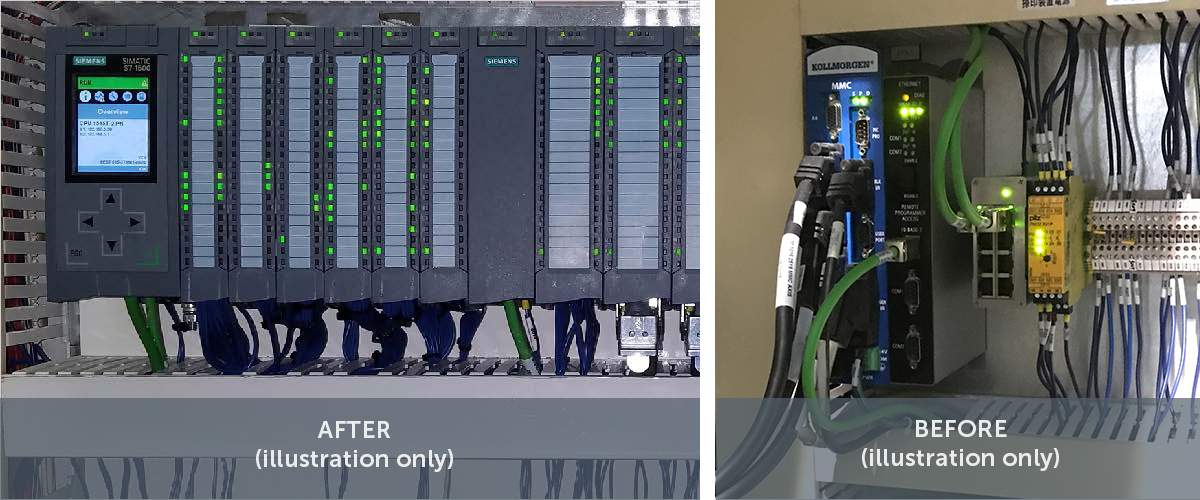

This upgrade is part of the Technical Improvement Program (TIP); it replaces the existing motion controller and associated touch screen with Siemens 1500 Series (TIA Portal) controller and a Magelis 12 in color touchscreen.

During this upgrade, a new 1500 Series (TIA portal) will be utilized. This rack will also include several I/O cards along with other cards as needed. The existing wires will be utilized during the conversion.

Existing Indramat Servo Drives and Servo Motors will be replaced with Siemens Sinamics Servo equivalents. Existing touchscreen will be replaced with latest Magelis 12” color touchscreen. The communication from HMI to the PLC will be done by Ethernet. This upgrade is compatible both with AMK or encoder sheeter interface options. This retrofit comes complete with mounting hardware and other required components. It also includes engineering labor, preassembly labor, and set(s) of bound documentation (including bill of materials, assembly drawings, schematics and program related to this item) in English language.

Benefits

  • Cost effective obsolescence replacement
  • Online programming and editing
  • Siemens drives, motors, PLC and HMI seamless communication
