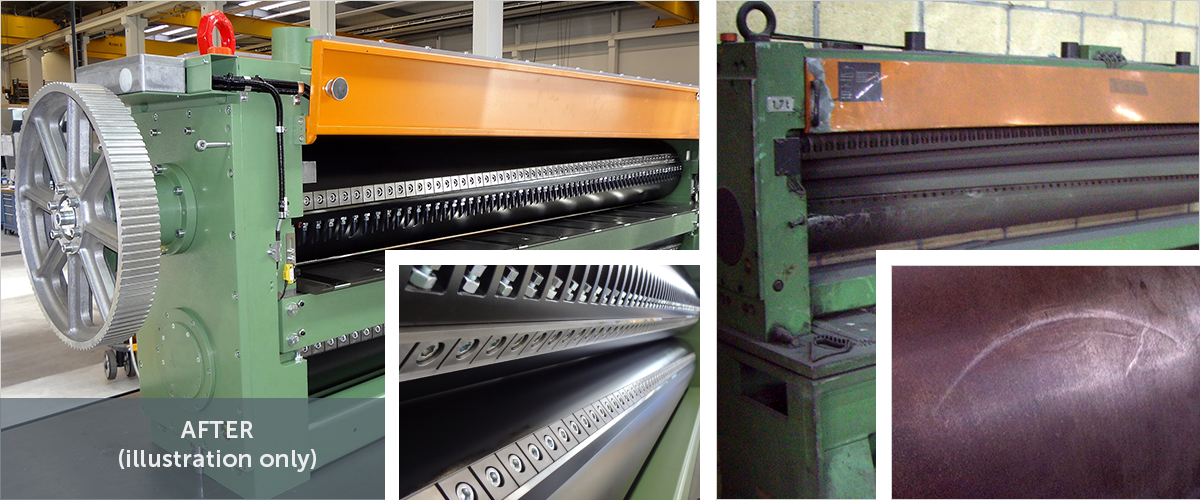

TIP C 1402 Cross Cutter General Overhaul
Machine Model for Improvement
All E.C.H. Will synchronous cross cutter units
Description of Improvement
Over time, after years of intensive daily, around the clock production, cross cutter parts wear out. As a result, knife life becomes shorter, cut quality deteriorates and oil leakages can occur.
This TIP module provides a complete overhaul of the cross cutter at the BW Papersystems facility in Germany, where all the required special precision machinery, tools, measuring equipment and expertise are available. During a general overhaul the unit is completely dismantled, thoroughly checked, cleaned and all wear and tear parts are replaced, regardless of their condition. The knife shafts are completely reconditioned in our in-house machine shop. The overhauled “as new” cross cutter comes with a 12 month warranty and written overhaul report. The general overhaul package does not include new knife shafts, cross cutter housing or internal gearbox gear wheels.
If a speed increase to 300 m/min. or higher is considered in the near future and the cross cutter’s knife shafts are not yet dampened, we recommend instead TIP C 1403 Cross Cutter General Overhaul & Dampening.
Note: While the cross cutter is being overhauled, it will not be available for production. The actual “Out-of-Service” time (door-to-door) depends on our workload and shipping period the time of inquiry/desired overhaul.
Recommendation: TIP C 1400 Axial Bearing for Cross Cutters is a perfect and highly recommended add-on to the general overhaul and could be included at no additional installation cost. For all specific benefits please refer to TIP C 1400.
Benefits
- Cross cutter will be “as new” with a 12 months warranty - more economic than a new unit
- Exchange of all wear and tear parts reduces operation and maintenance costs
- Cut quality equal to that of a new cross cutter unit
Technical Service
The BW Papersystems Service Department is a highly dedicated team of people committed to giving the best customer support in the industry. Trained technicians are available for emergency service, machine updates and maintenance.
Technicians are available throughout the world for fast response and quality service. Learn more about how our service technicians can help you.
