TIP WEB-0404 Motorized Edge / Roll Decurler

TIP_WEB-0404_Motorized Edg-Roll Decurler

Machine Model for Improvement

Folio-size sheeter type SHM 1400

Description of Improvement

This upgrade is part of the Technical Improvement Program (TIP); it consists of adding a 6 mm thick decurler bar along

with a 20 mm diameter decurler bar.

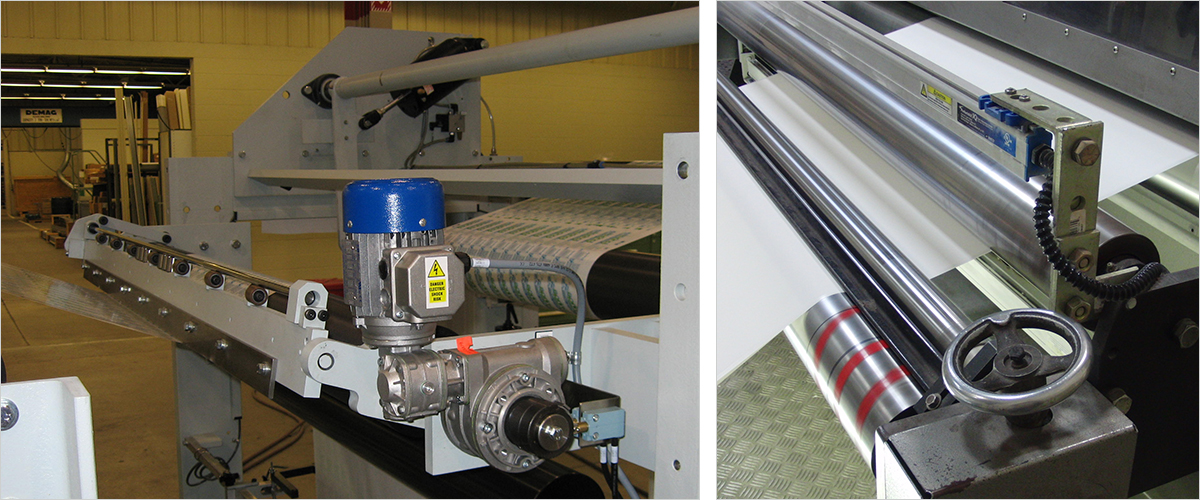

The Edge/Roll Decurler assembly comes with the required frame work and support brackets in order to integrate into the existing roll stand. The remotely mounted operator station houses the required components for the decurler’s up and down movements. The over travel limit switches are included to shut the motor power off in case maximum allowed mechanical limits are reached.

A 150 mm diameter decurler roller is included in this upgrade.

Benefits

  • Motorized system is superior over manual adjustments
  • Quick change over between edge and roll decurlers
  • Improves stack quality and machine performance
