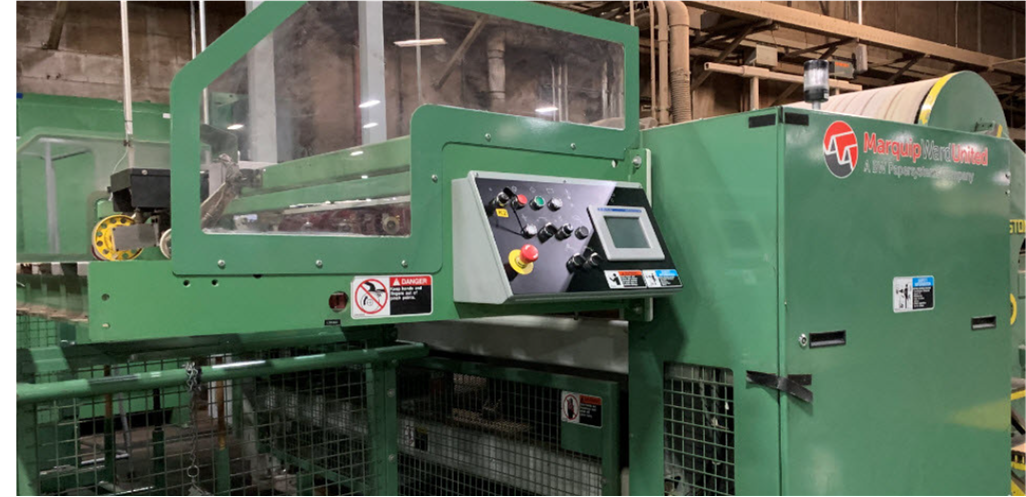

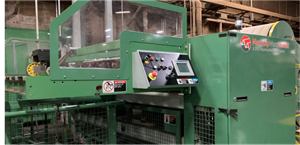

SHEAR: Used Dual Rotary Shear

Product Description

Includes:

  • Shear has been Tested & Tuned: failed parts replaced, powered up, tested, and is ready for immediate sale
  • 2500 mm (98 in) width
  • Left Hand Drive Paper Going
  • Sever web capability for support of high-speed order changes
  • Divert capability up to 200 MPM (650 FPM)
  • 1092 mm (43 in) board pass height
  • Helical-wound blades on knife cylinders for creation of straight cut
  • Compact Logix PLC with Panel View touchscreen
  • Powered diverter reliably drives poorly bonded board into the scrap cart

As-Is, Where-Is Machine:

  • Originally Manufactured 2015
  • Prints and Manuals provided
  • Warranty not included

Scrap Cart (Quantity 1):

  • Scrap cart with wheels for easy removal and unload of shear waste.
