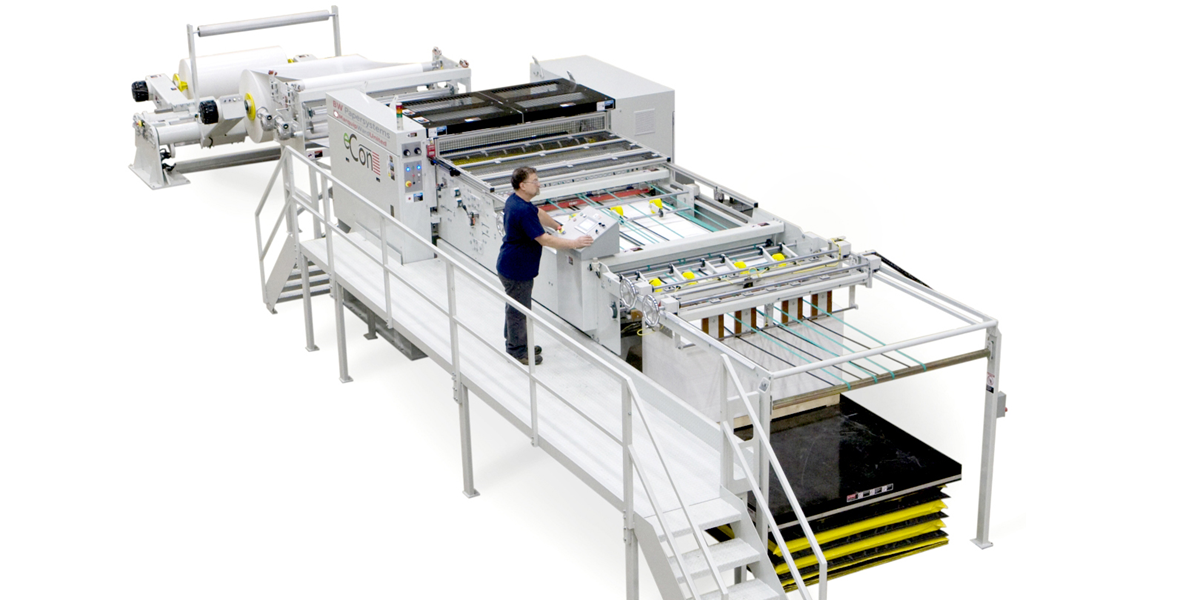

eCon 1650 Sheeter

Product Description
The eCon Sheeter is a world-class machine. It’s easy to operate and maintain. We engineered an innovative design to produce an affordable and economical sheeter This sheeter allows for a quick return on investment for sheeter operations. Whether you are just starting your sheeting business, or need to expand your production the eCon Sheeter offers the sheet quality and accuracy demanded by modern, high-speed, offset press manufacturers.  Contact BW Papersystems to find out more information about the eCon Sheeter.

eCon Sheeter Features

The eCon Sheeter has world-leading knife technology, that creates a remarkable cost-to-output ratio. The eCon has an intelligent HMI (human-machine interface) diagnostic with remote support options available. Standard features include low-level reel trolleys; and dual position shaftless unwind loads reel directly from the floor or loading trolley; and the decurler section incorporates 2 or 4 dual diameter roller decurlers. In addition, the pulsed air jets at the overlap section provide better reliability at higher running speeds. It produces press-ready stacks without pile turning.  Learn more about the features of the eCon Dual Rotary Sheeter below.

Remarkable Cost to Output Ratio

The eCon Sheeter is an affordable and highly standardized Dual Rotary Knife Sheeter with a remarkable cost-to-output ratio. It is superior in design, quality, and performance when compared with any other paper sheeter machine in its price range.

Superior Knife Cut Quality

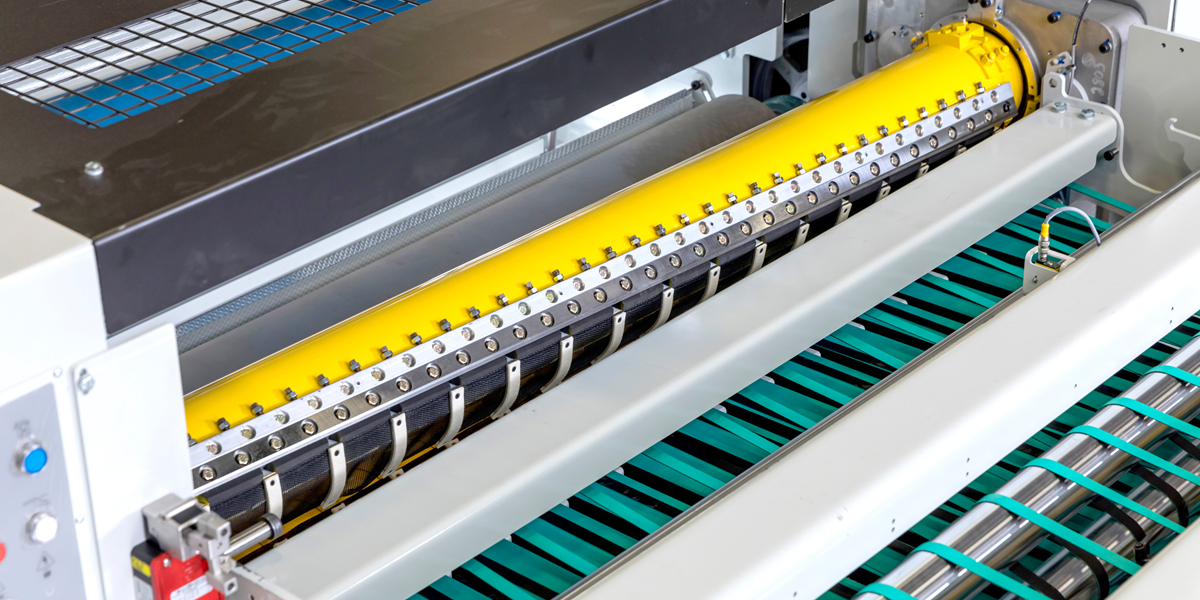

The eCon Sheeter incorporates legendary Marquip knife technology, providing superior knife cut quality at all speeds. Its specifications are up to 1000 gsm. The knife has on-machine blade sharpening, low power consumption, and the best speed curve. In addition, pulsed air jets at the overlap section provide better reliability at higher running speeds.

Safe and Easy Reel Loading

The eCon Dual Rotary Sheeter is designed to be simple to operate and easy to maintain. Low-level reel trolleys are installed to allow safe and smooth reel loading.

Lateral Jogging on Stacker

Great stack quality is achieved due to the lateral jogging on the stacker of the eCon Sheeter. The side jogging plates ensure that square-sided, stacks are produced.

Customization Options

The eCon Paper Sheeter can be customized with additional features that are optional, such as a two or four-position edge guiding system, full-width dual-sided web cleaner, reject gates, tab inserters, and more!

Partner with BW Papersystems Sheeting Equipment

BW Papersystems prides itself on being an industry-leading sheeter manufacturer. Our dedicated team provides the most reliable and consistent products in the market. Contact BW Papersystems to learn more about one of the most advanced Sheeter knives in the world and add the eCon Dual Rotary Sheeter to your production line today!

Download a brochure
With the eCon sheeter, we save time and achieve better product quality. Our material is processed more than twice as fast as before, with significantly better cut and stack quality. - Todd Baumann, Corporate Maintenance Engineer, Nekoosa Coated Products, Nekoosa, WI, USA
Product Features

The eCon sheeter is an economic, standardized dual rotary folio sheeter that is easy to operate and maintain. It offers the sheet quality and accuracy demanded by modern, high-speed, offset press manufacturers.

Remarkable Cost to Output Ratio

The eCon was designed to be affordable and economic, ensuring a quick return on investment.

Superior Knife Cut Quality

This sheeter incorporates legendary Marquip knife technology, providing superior knife cut quality at all speeds and at up to 1000 gsm. The knife has on-machine blade sharpening, low power consumption and the best speed curve.

Safe and Easy Roll Loading

A dual position shaftless unwind loads reel directly from the floor or loading trolleys.

Simple to Operate

The eCon has an intelligent HMI (Human Machine Interface), diagnostics with remote support options and is easy to run and to maintain.
  • Technical Data
  • Product Details
  • Options
MetricImperial
Sheet Widthmax.1650 mm65 in
Reel Widthmax.1700 mm67 in
Reel Diametermax.1830 mm72 in
Reel Weightmax.3410 kg7500 lb.
Core Diametermin.
max.		76 mm
305 mm		3 in
12 in
Speedmax.300 m/min980 ft/min
Sheet Length AccuracySingle Web+ / - 0,38 mm (0.015 in)
Sheet Length AccuracyMulti Web+ / - 0,5 mm (0.020 in )
Knifemax.1000 gsm*
 * On some heavier materials trials may be required to establish decurler suitability
Slittermax.600 gsm
Sheet Lengthmin.400 mm15.75 in
Sheet Length With Shinglingoptional1650 mm
2080 mm		65 in
82 in
Stack Height
optional		1500 mm
1800 mm		60 in
72 in

eCon 1650 Sheeter

Compare With

  • Low level reel trolleys are installed to allow safe and easy reel loading
  • The dual position shaftless unwind loads reels directly from the floor or loading trolley
  • The decurler section incorporates 2 or 4 x dual diameter roller decurlers
  • A 2 position slitting system
  • The most advanced Sheeter knife in the world
  • Pulsed airjets at the overlap section provides better reliability at higher running speeds
  • The stacker provides side jogging for great stack quality
  • Advanced PC based control system. The HMI has intuitive clear functionality and advanced on screen diagnostics

  • A two or four position edge guiding system
  • Sensors detect joints in the web and automatically reject them to the waste bin
  • Full width dual sided web cleaner
  • Reject gate
  • Tab inserters
  • Cut-to-Register
  • Lightweight paper package
  • Per4Mizer - web-based analyzing tool
Video image_eCon sheeter_timelapse

eCon Sheeter - Installation timelapse at customer Corti, Argentina

The MarquipWardUnited eCon Sheeter is a world-class machine. It’s not only easy to operate and maintain but it's also easy and quick to install. It takes a little bit longer than in this timelapse though... Enjoy and watch the eCon sheeter being installed at our customer Corti in Argentina.

Watch Video
Related Content
Celebrating the 100th eCon sheeter sold

Celebrating the 100th eCon Sheeter Sold
eCon Sheeter for Minskaya, Belarus

Minskaya Tipografiya, Belarus to install a new eCon folio sheeter at Minsk’ plant

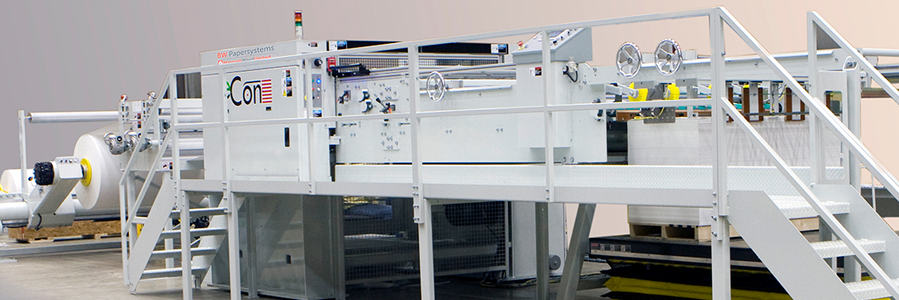

BW Papersystems sells its 50th eCon Folio Sheeter
