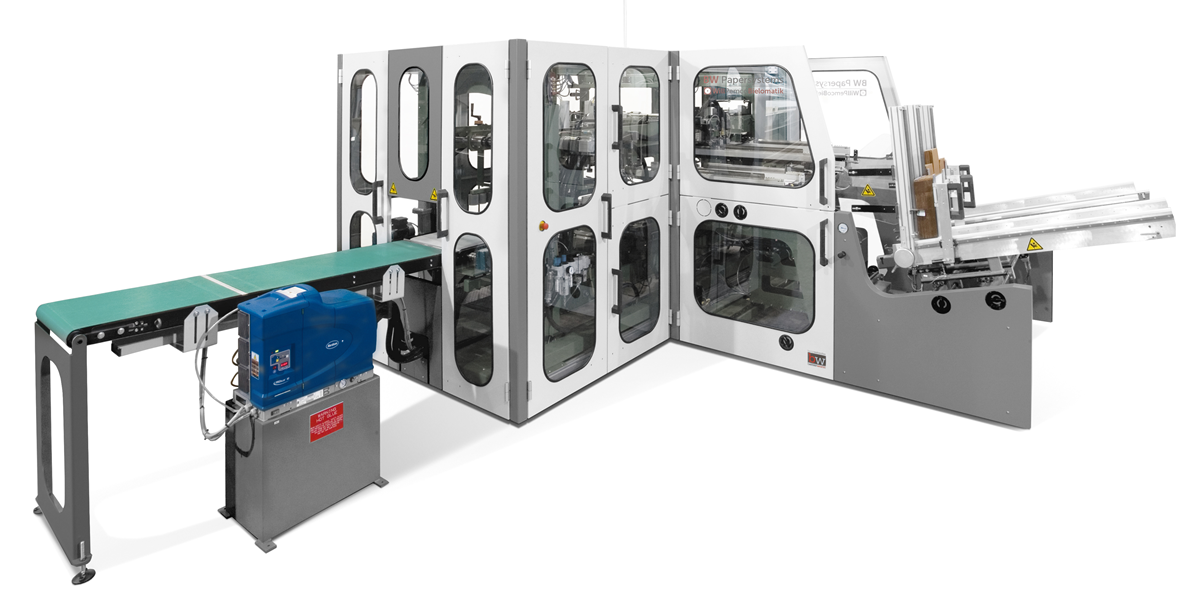

Model 163 Versatile Case Packer & Lidder

Product Description
The Model 163 Case Packer provides flexibility for varying ream sizes including single & double stack configurations. The case packer can be configured with straight through or side feed orientations. The optional semi-automatic size changeover with preloaded recipes reduces size change cycles.

  • Flexible cartonizing of single or double stacked reams
  • Up to 20 (single) cases per minute
  • All metric design
  • Compact machine design
  • 30 minute or less carton size changeover time, optional 10 minute or less
  • Servo controlled for smooth product handling
  • Overspeed capability to empty accumulated stacks
  • Touchscreen interface and programmable logic controller (PLC)
  • Options include semi-automatic size changeover, bulk pack capability & robotic blank loading cell
Ideal for...
  • Integrated paper mills & converters of standard metric ream sizes
Product Features

The Model 163 Case Packer provides flexibility for varying ream sizes including single & double stack configurations. The case packer can be configured with straight through or side feed orientations. The optional semi-automatic size changeover with preloaded recipes reduces size change cycles.

Versatility

The Model 163 combines a wide range of formats. It can produce up to 20 cases per minute (single ream stacks) in two-piece cartons. A motorized size changeover option facilitates changes in 10 minutes or less.

Precise Blank Control

The case packer/lidder uses flighted HTD timing belts, improving the transfer of both carton and lid blanks. No flight chains are used that can stretch or break, causing product irregularities.

Robotic Cell Option

For an easy and fast handling of lid and carton blanks, the Model 163 can be equipped with a robotic blank load cell. The robot will pick stacks of blanks from a pallet to place them onto the hopper of the case packer, hence eliminating the manual work needed for replenishing blanks.

Simple Operation

A touchscreen makes machine operation easy and convenient. In addition, the Model 163 is a very accessible machine. The electrical enclosure is mounted to the machine to create a single, simple footprint - making the Model 163 ideal as a replacement for existing case packer/lidders.
  • Technical Data
  • Product Details
  • Options
MetricImperial
Case size range250 - 520 mm (length)
175 - 365 mm (width)
150 - 330 mm (height)
optional height: 100 -149 mm
10 in - 20.5 in (length)
7 in - 14.5 in (width)
6 in - 13 in (height)
optional height: 3.9 in - 5.9 in
Production Speedsingle stack - up to 20 cases/minute
Lid flap range70 - 102 mm (minimum to maximum)2.75 in to 4 in (minimum to maximum)

Model 163 Versatile Case Packer & Lidder

Compare With

Flexibility for a wide range of formats

Versatile case packer/lidder for metric ream sizes

The Model 163 combines a wide range of formats. It is capable of producing up to 20 cases per minute (single ream stacks) in two piece cartons. A motorized size changeover option facilitates changes in 10 minutes or less.

Servo drive & control for performance and maintenance

Servo drives and control allow for smooth product handling and repeatable performance. It also results in fewer wear parts and less maintenance.

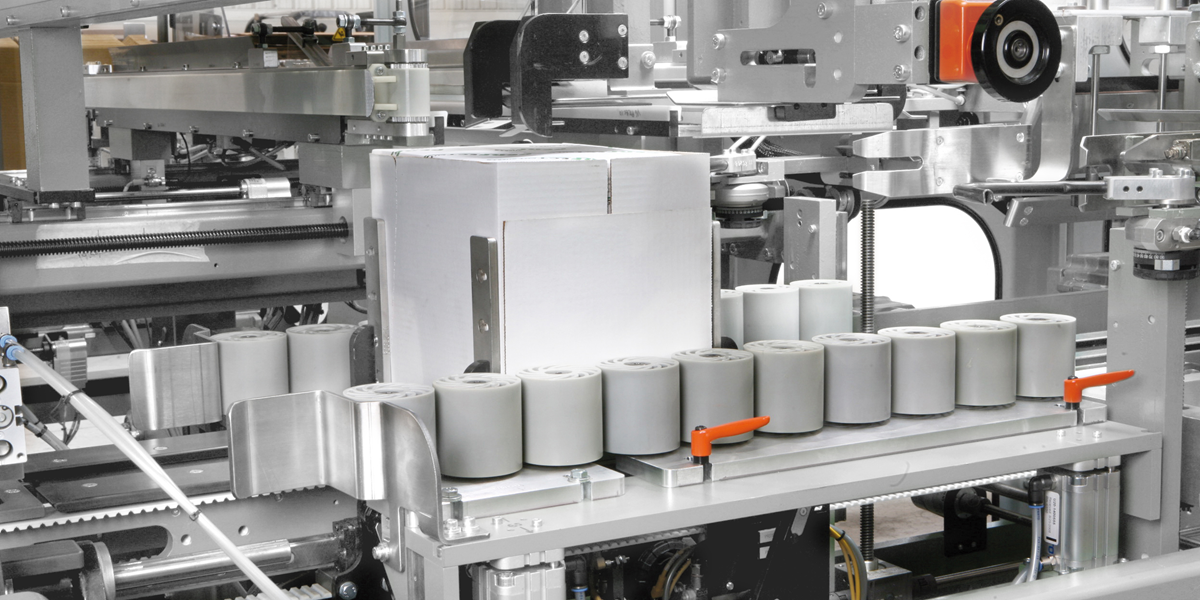

Precise blank control and positioning

The case packer/lidder uses flighted HTD timing belts, improving the transfer of both carton and lid blanks. No flight chains are used that can stretch or break, causing product irregularities.

Optional: semi-automatic size change

With this option, size change cycles can be reduced to 10 minutes or less. Programmable recipes ensure easy
repeatability of set-ups.

Touchscreen & small footprint simplify machine operation

A touchscreen makes machine operation easy and convenient. In addition, the Model 163 is a very accessible machine. The electrical enclosure is mounted to the machine to create a single, simple footprint - making the Model 163 ideal as a replacement for existing case packer/lidders.

Optional innovative feature: robotic blank load cell

For an easy and fast handling of lid and carton blanks, the Model 163 can be equipped with a robotic blank load cell.
The robot will pick stacks of blanks from a pallet to place them onto the hopper of the case packer, hence eliminating
the manual work needed for replenishing blanks.


System solutions for case packer/lidder Model 163

This versatile case packer/lidder can be part of a complete sheeting and packaging line, it is easily combined inline with

  • WillPemcoBielomatik cut-size sheeters (e.g. SLK Procut (2-6) pockets)
  • Further WillPemcoBielomatik packaging machines
    • Ream wrapper
    • Ream labeler
    • Ream inspection/rejection
    • Ream stacker/accumulator
    • Case labeler
    • Case inspection/rejection

  • Semi-automatic size change (reducing size change cycles to 10 minutes or less, programmable recipes ensure easy repeatability of set-up)
  • Side entry infeed
  • Management Information System (MIS)
  • Bulk pack capability (Accu 25 required)
  • Robotic blank loading cell

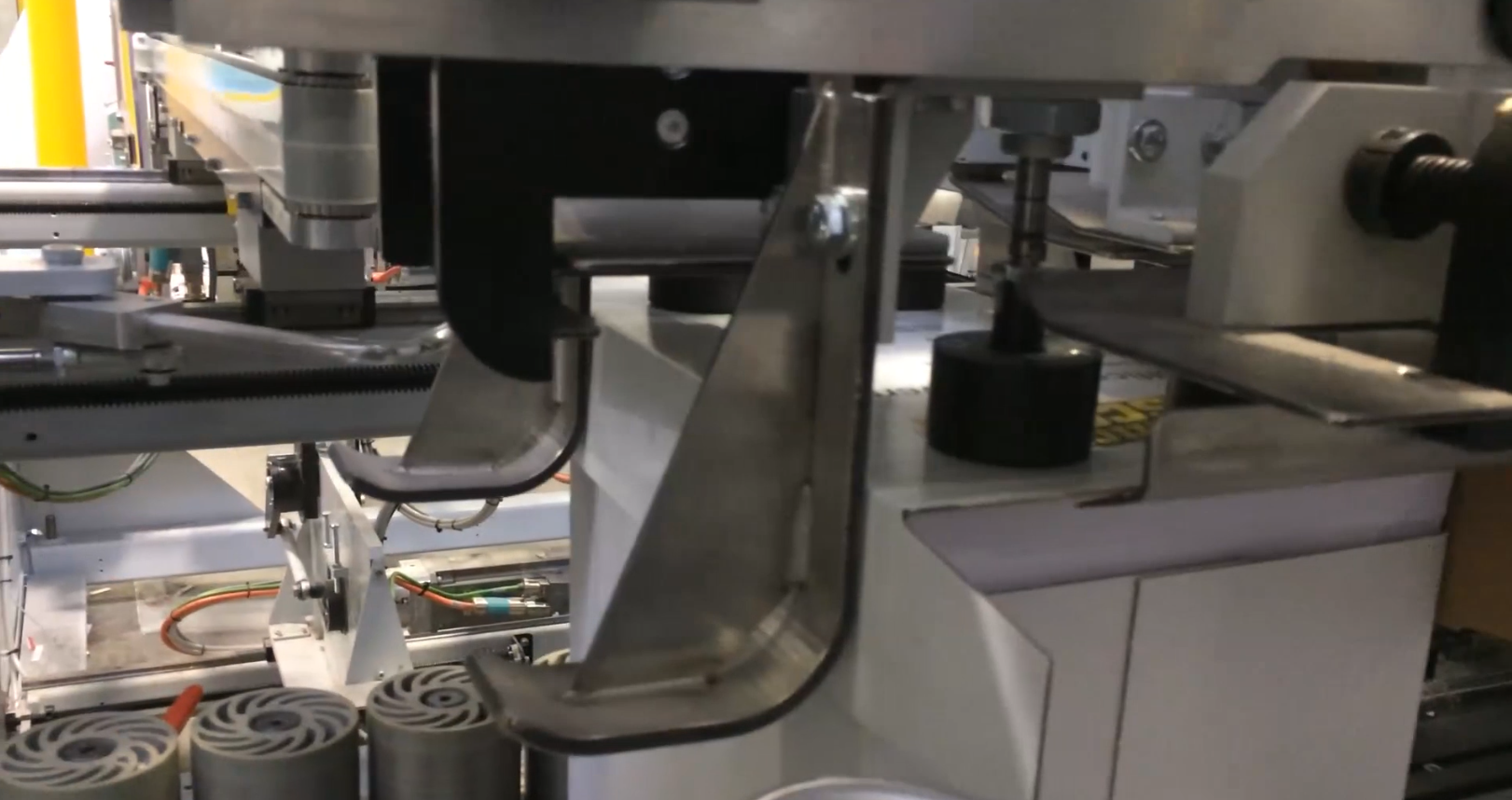

Video image_Model 163_case packer

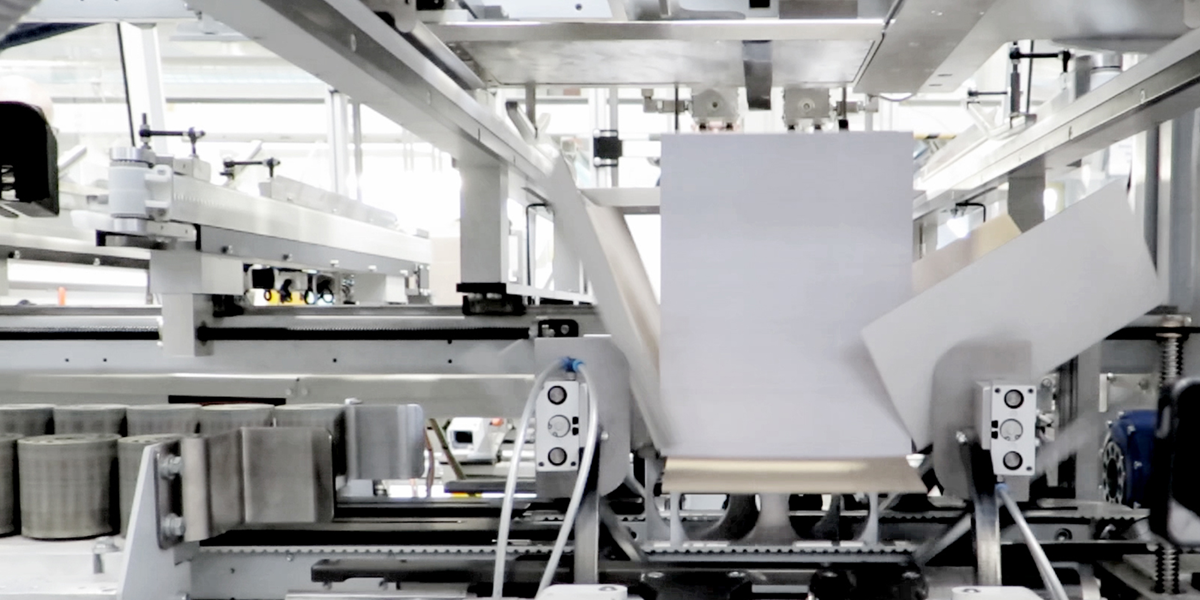

Case Packer Model 163 with Accu Bulk Packaging option

This video shows the WillPemcoBielomatik Model 163 Case Packer with Bulk Packaging option. The case packer provides flexibility for varying ream sizes including single & double stack configurations. The case packer can be configured with straight through or side feed orientations. The optional semi-automatic size changeover with preloaded recipes reduces size change cycles. Options include semi-automatic size changeover, bulk pack capability robotic blank loading cell.

Watch Video
