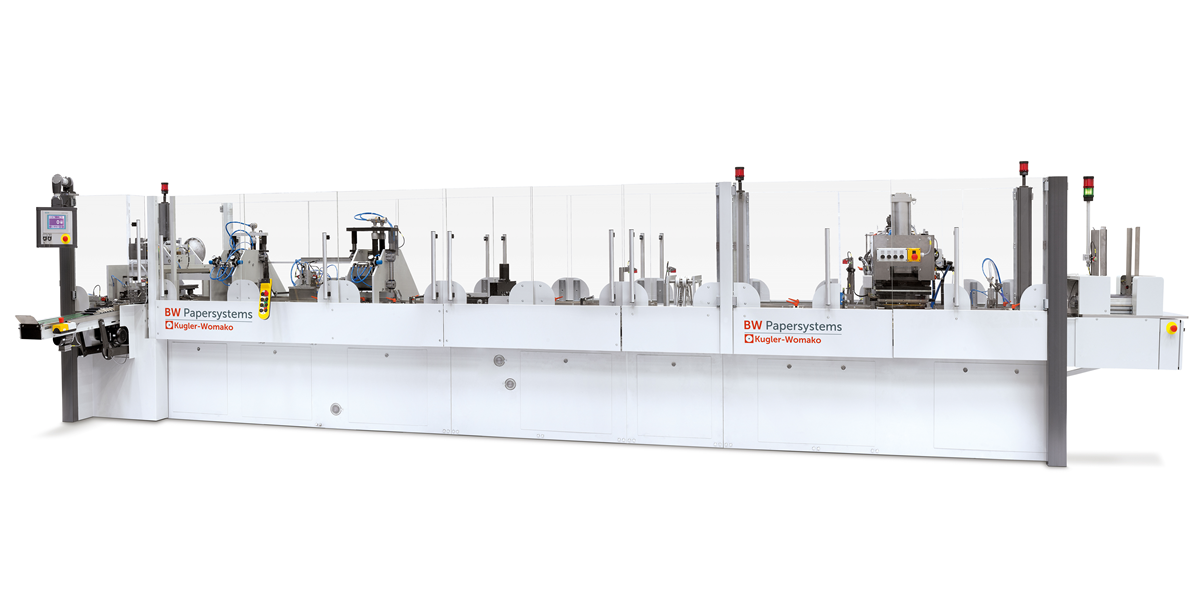

PassPort 3 Machine

Product Description

The layers which have been sewn and laminated in PassPort 1 and 2R machines are separated into single ups, folded and cut to size in a die cutting station using the PassPort 3 Machine.

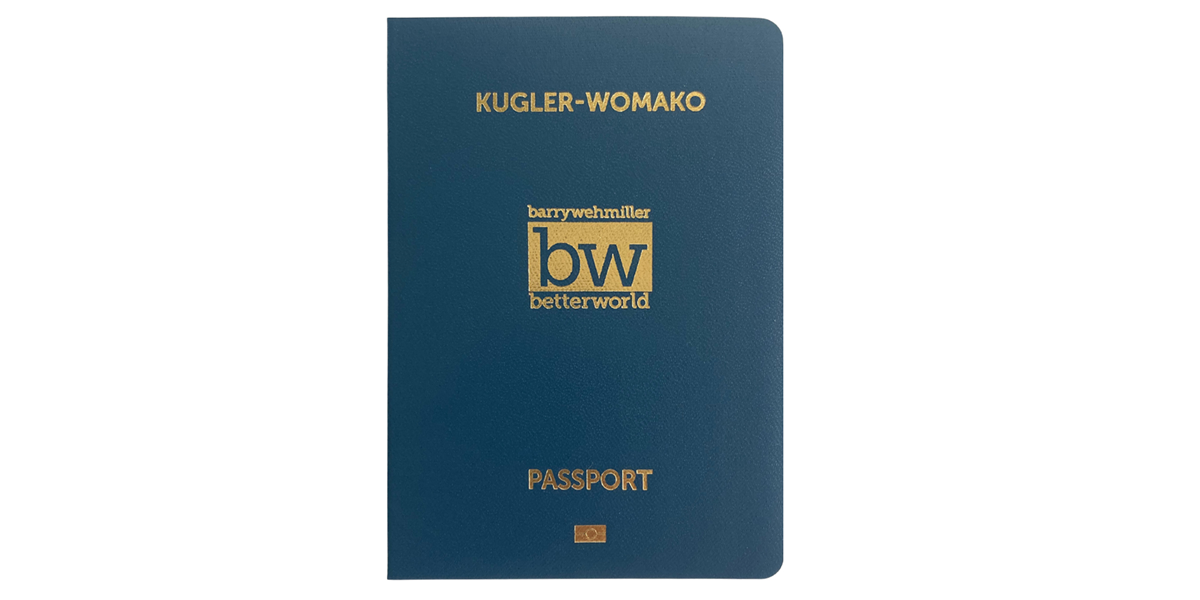

The passport covers can be gold embossed. All styles of passports and e-passports can be manufactured by combining PassPort 3 with our PassPort 1, 2R and 4 machines.

Download a brochure

Parts

Maintenance

Upgrades

We would like to extend our gratitude and appreciate for your help and support in the Philippine e-Passport project. With your invaluable contribution, the launch gathered positive response from our fellow citizens. - Henry P. Cureg, President, United Graphic Expression Corporation, Philippines

Product Features

Passport Machine for Gold Foil Embossing, Folding and Die-Cutting

Compliance with Standards

Suitable for (electronic) Machine Readable Travel Document (eMRTD) according to ISO and ICAO standards.

Productivity and Technology

High productivity and reliable production in terms of quality and output
Sophisticated technology for easy operation and maintenance

Design and Modularity

Rigid design for increased life expectancy (>30 years)
Modular layout in order to accommodate various types of passports and future upgrades

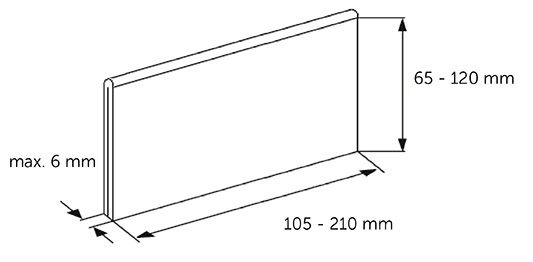

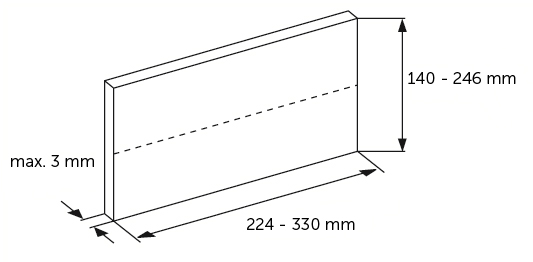

	Layers	Booklets
Cycles/min	max. 25 layers	max. 50 booklets
Layer thickness	max. 3 mm	max. 6 mm
Sewn side	224 mm - 330 mm	105 mm - 210 mm
Unsewn side	65 mm - 120 mm	140 mm - 246 mm

Metric Imperial

PassPort 3 Machine

Compare With

PassPort 3 Basic Equipment

Feeding of sewn and laminated layers
Separating cut into single ups
Creasing station with optional heating
Folding
Spine pressing station with optional heating
Die-cutting
Delivery

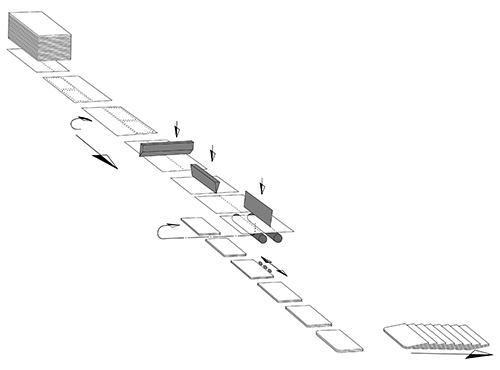

PassPort 3 Process

Add-on Options

Gold embossing with turning of the passport
Quality control of gold embossing by camera with automatic rejections
Chip verification with fully automated rejection of defect chips without interrupting of production
Registration of chip-UIDs used and other tracking features
Vertical book delivery, magazine outfeed
