PassPort 4 Machine

Product Description

After the books have been sewn, laminated and cut to size using the Passport 1, 2R and 3 machines, the PassPort 4 numbers the books with a gothic number and/or a laser perforation. Alternatively, a barcode of the passport number can be applied into the book or printed onto a label. Optionally chips can be simultaneously verified and initialized for e-passports.

All styles of passports and e-passports can be manufactured by combining machine PassPort 4 with our PassPort 1, 2R and 3 machines.

Download a brochure

Parts

Maintenance

Upgrades

We would like to extend our gratitude and appreciate for your help and support in the Philippine e-Passport project. With your invaluable contribution, the launch gathered positive response from our fellow citizens. - Henry P. Cureg, President, United Graphic Expression Corporation, Philippines

Product Features

Passport Machine for Number and Chip Programming

Compliance with Standards

Suitable for (electronic) Machine Readable Travel Document (eMRTD) according to ISO and ICAO standards.

Productivity and Technology

High productivity and reliable production in terms of quality and output
Sophisticated technology for easy operation and maintenance

Design and Modularity

Rigid design for increased life expectancy (>30 years)
Modular layout in order to accommodate various types of passports and future upgrades

	PassPort 4-25, 4-45 and 4-50
Cycles/min	25, 45 or 50 booklets/min depending on the layout
Size range	Size: 125 ± 5 x 88± 5 Thickness max. 6 mm
	CRN impact number/barcode 39 printing	Laser numbering

PassPort 4-25, 4-45 and 4-50

Cycles/min

25, 45 or 50 booklets/min depending on the layout

Size range

Size: 125 ± 5 x 88± 5

Thickness max. 6 mm

CRN impact number/barcode 39 printing

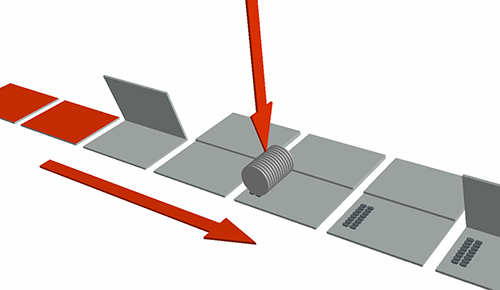

PassPort 4 Print Cut

Laser numbering

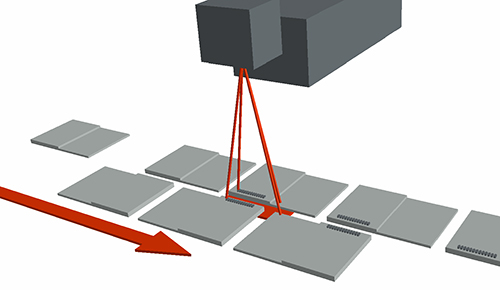

PassPort 4 Laser Numbering

Metric Imperial

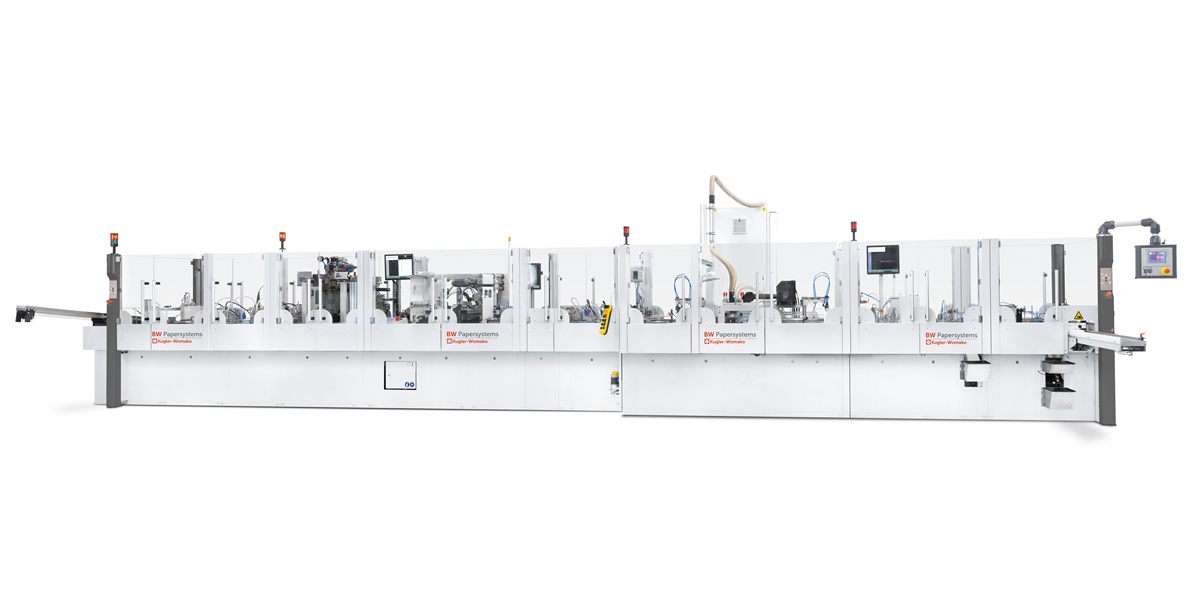

PassPort 4 Machine

Compare With

PassPort 4 Basic Equipment:

Opening of cover and pages according to passport layout
CRN impact number/barcode 39 printing
Camera control of printed numbers/bar codes
Registration of Chip-UIDs and passport numbers
Opening of additional pages
Laser perforation of the number with round or shaped holes (square, triangle, oval, star)
Offset transport for optimum utilization of laser cycles
Camera control of perforated numbers
Vertical delivery

Add-on Options

Chip initialization
Enhanced tracking features
Inkjet number printing
