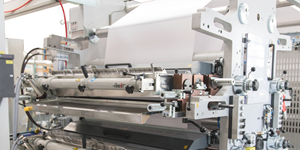

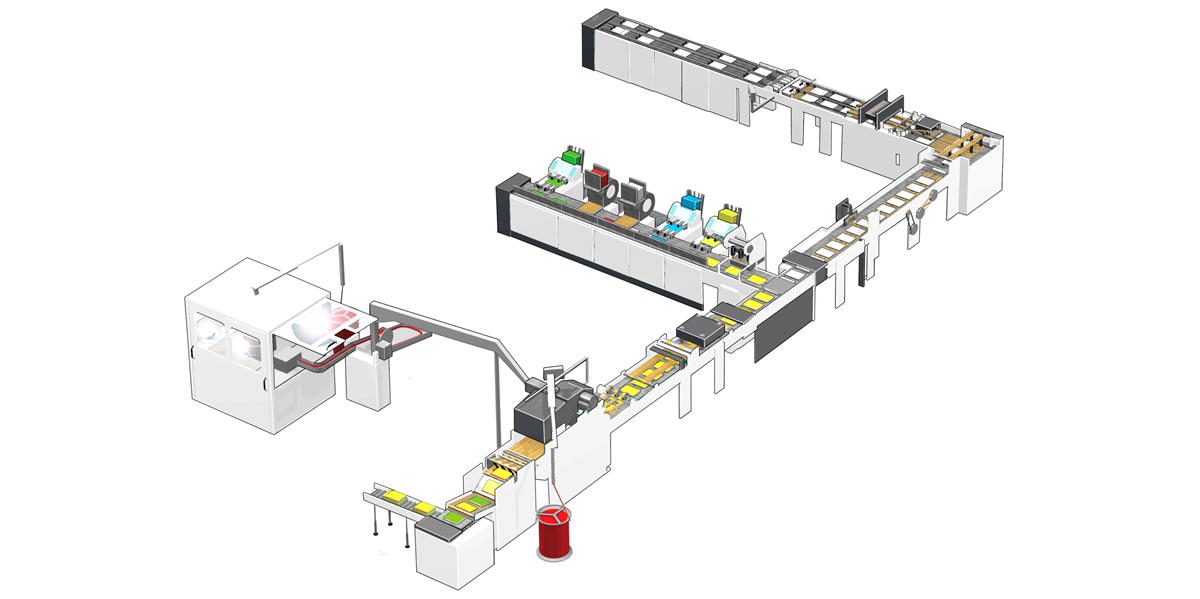

P 42-49 Semi Automatic Binding Machine

Product Description

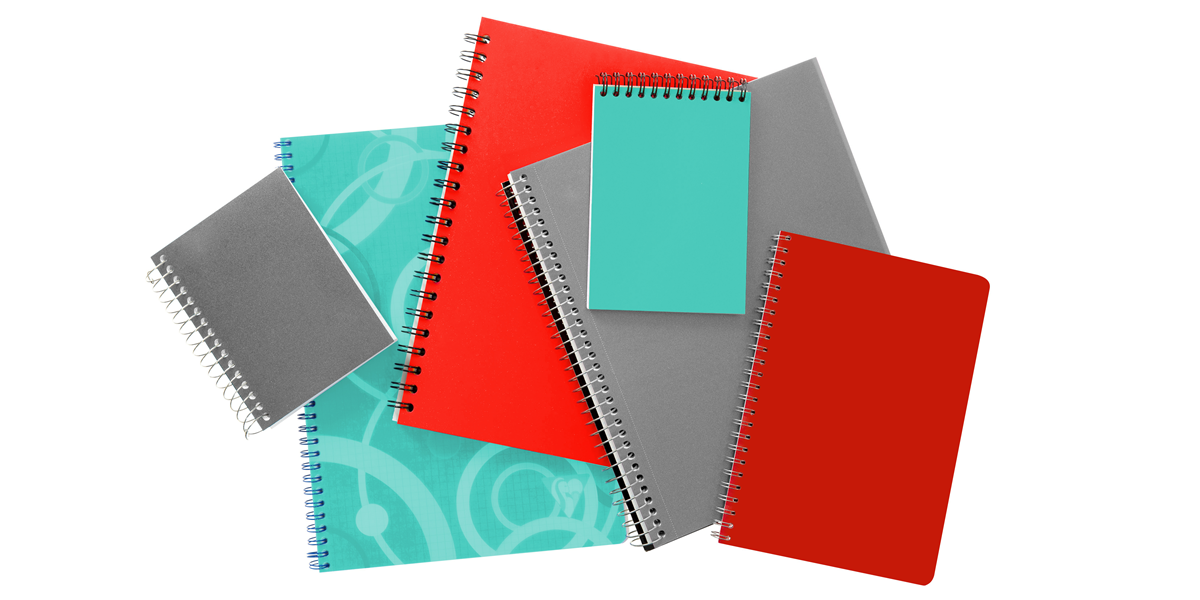

The semi automatic P 42-49 Binding Machine is a highly sophisticated solution for the fabrication of steel spiral and double​-wire stationery products. It can be used for medium and large runs, from cut-to-size paper to the finished product. Basic machine consists of manual infeed, layer dividing, punching, recollating, 90° transfer, spiral and/or double wire binding and delivery in shingles.

Product Features

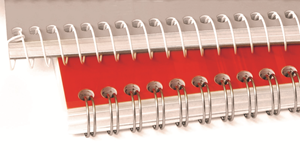

Semi Automatic Binding Machine for Steel Spiral and Double-Wire Products

Medium to Large Runs

Optimal for medium to large runs.

Efficiency

High productivity, quality and flexibility.

Upgrades

Additional upgrades possible.

Time Saving

Short change over times.
  • Technical Data
  • Product Details
  • Options
  ImperialMetric
Manual infeedmax.2x30 = 60/min
Number of partial layersmax.
min.		10
2
Punching cycles papermax.2x120 = 240/min
Punching cycles feeder sectionmax.120/min
Binding cycles 1-upmax.60/min
Binding cycles 2-upmax.2x60 = 120/min
Bound edge 1-up
Machine without separation cut unit		max.
min.		13 in.
5 3/4 in.		330 mm
148 mm
Bound edge 1-up
Machine with separation cut unit		max.
min.		13 in.
6 5/16 in.		330 mm
160 mm
Bound edge 2-up
Machine with separation cut unit		max.
min.		6 5/16 in.
3 in.		160 mm
75 mm
Unbound edgemax.
min.		9 in.
4 1/8 in.		230 mm
105 mm
Product thickness steel spiralmax.
min.		1 3/16 in.
5/64 in.		30 mm
2 mm
Diameter steel spiralmax.
min.		1 3/4 in.
5/16 in.		44 mm
8 mm
Product thickness double wiremax.
min.		3/4 in.
5/64 in.		20 mm
2 mm
Diameter double wiremax.
min.		1 in.
1/4 in.		25,4 mm
6,35 mm

P 42-49 Semi Automatic Binding Machine

Compare With

Please contact us for more information.

  • Automatic feeder section for flexible and nonflexible covers, inlays, pockets and dividers including punching
  • Corner rounding
  • Half sheet feeder
  • Separation cut for small sizes
  • Double​-wire from spool or inline double wire​-forming Machine P 44-96 or ProLoop
  • Back cover turning
  • Alternate delivery and collecting
  • Extension of a packaging machine
  • Possible upgrade to a fully automatic version with integrated ruling machine
Related Content
150 years pf exercise books ECH WILL

Exercise Book Lines - 150 years of Tradition

BW Papersystems Offers Solution for Standard and Custom Applications

BW Papersystems Offers Solution for Standard and Custom Applications

Product of Excellence Award for Kugler-Womako's EcoBinder book

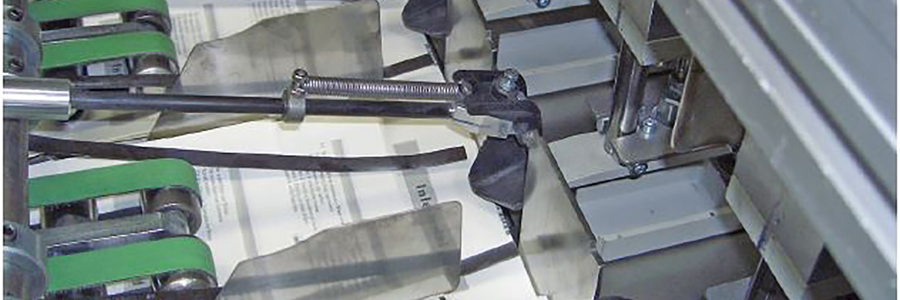

DC Book Binding

Structural change in book production
Binding Machine from BW Papersystems Ecobinder

Promotional Gift Award

Binding Machine Ecobinder

Innovations for Print

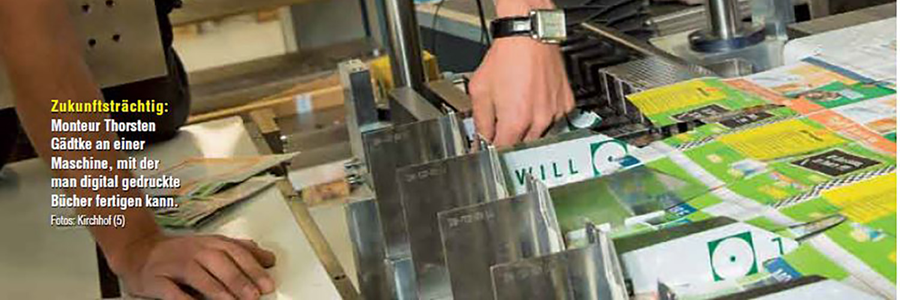

Aktiv im Norden Magazine
