P 44-96 Double Wire Forming Machine
Product Description
The Double Wire Forming Machine P44-96 is the most sold and approved double wire forming machine in the world. Based on its strong and solid design the machine is the ideal solution for long lasting high speed inline or standalone production runs.
Diameter and pitch can be changed quickly to avoid unnecessary downtimes. All common diameters and pitches can be manufactured in absolutely high and constant quality.

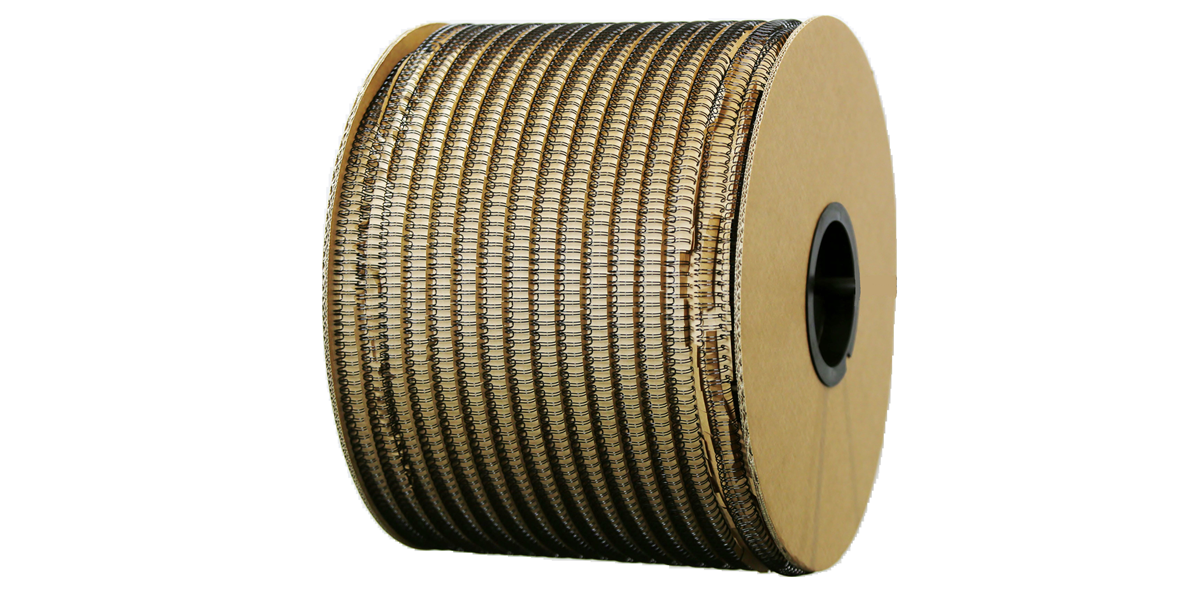

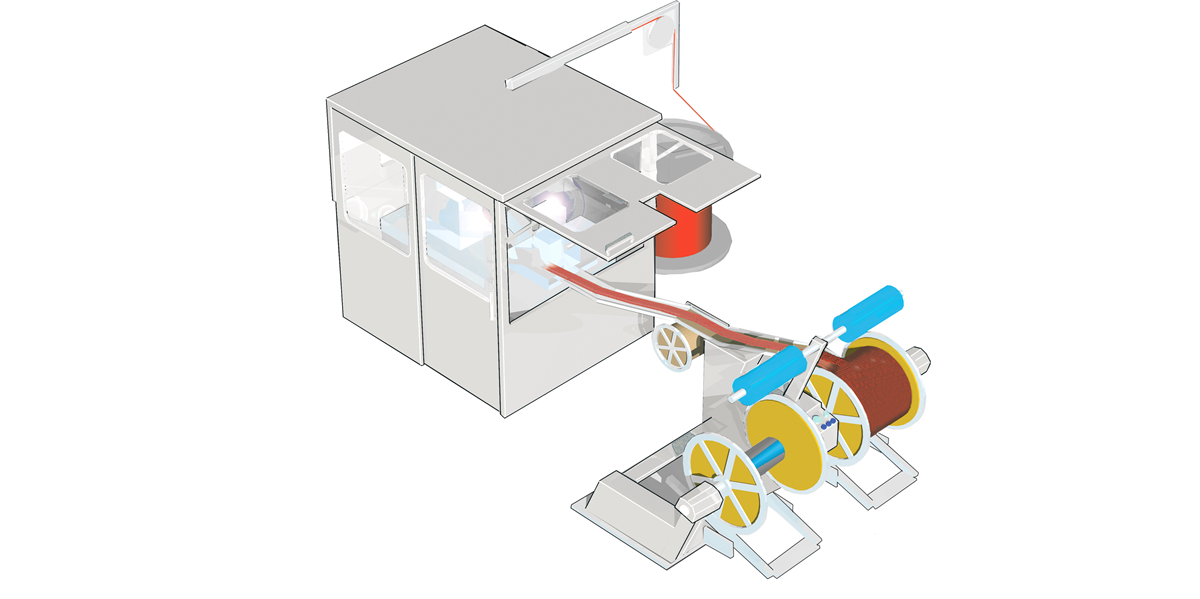

In state of the art design the wire forming machine constitutes of a self-sufficient unit, either tied in with a binding line as finishing unit, or as an independent unit for double wire production on spools.
Product Features
Double-Wire Forming Machine
Flexibility
Time Saving
Quality
Extended Tool Life
| Double wire Ø (inch) | Pitch p -1 (inch) | Wire Thickness Ø (mm) | Speed Loops/min |
|---|---|---|---|
| 7/32 | 4:1 | 0,65 - 0,80 | 2500 |
| 9/32 | 4:1 | 0,65 - 0,80 | 2500 |
| 7/32 | 3:1 | 0,65 - 0,80 | 2500 |
| 9/32 | 3:1 | 0,65 - 0,80 | 2500 |
| 1/4 | 3:1 | 0,65 - 0,80 | 2500 |
| 5/16 | 3:1 | 0,70 - 0,95 | 2500 |
| 3/8 | 3:1 | 0,70 - 0,95 | 2300 |
| 7/16 | 3:1 | 0,80 - 1,05 | 2300 |
| 1/2 | 3:1 | 0,80 - 1,05 | 2000 |
| 9/16 | 3:1 | 0,90 - 1,20 | 2000 |
| 9/32 | 2:1 | 0,65 - 0,80 | 2200 |
| 1/4 | 2:1 | 0,65 - 0,80 | 2200 |
| 5/16 | 2:1 | 0,70 - 0,95 | 2200 |
| 3/8 | 2:1 | 0,70 - 0,95 | 2000 |
| 7/16 | 2:1 | 0,80 - 1,05 | 2000 |
| 1/2 | 2:1 | 0,80 - 1,05 | 1900 |
| 9/16 | 2:1 | 0,90 - 1,20 | 1900 |
| 5/8 | 2:1 | 1,10 - 1,40 | 1800 |
| 3/4 | 2:1 | 1,10 - 1,40 | 1800 |
| 7/8 | 2:1 | 1,10 - 1,40 | 1200 |
| 1 | 2:1 | 1,10 - 1,40 | 1200 |
| 1 1/8 | 2:1 | 1,40 - 1,60 | 900 |
| 1 1/4* | 2:1 | 1,40 - 1,60 | 900 |
| 1 1/2* | 2:1 | 1,40 - 1,60 | 600 |
