ProLoop Forming Machine
Product Description

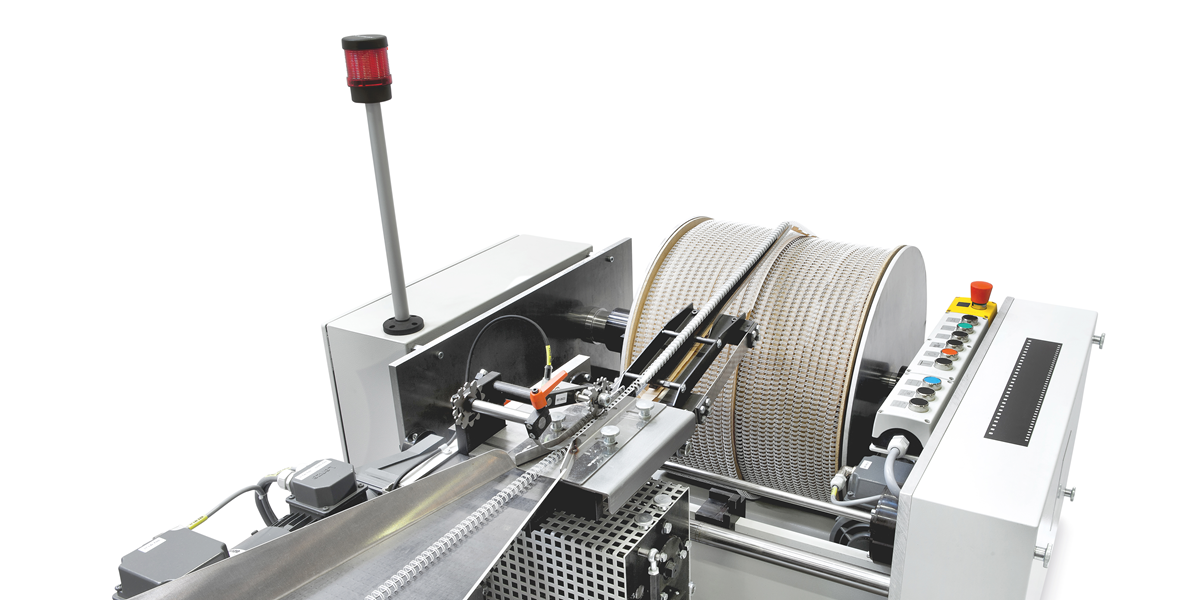

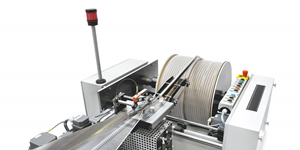

The ProLoop is a high-performance Double Wire Former with state-of-the-art control and drive technology and a sophisticated double wire forming system. This technology ensures easy size change, precision adjustment and enhanced quality of the double wire. As a stand-alone unit, the ProLoop produces double wire directly onto spools. An inline connection with a binding machine sets up an integrated production line for double-wire-bound products.
In state of the art design the wire forming machine constitutes of a self-sufficient unit, either tied in with a binding line as finishing unit, or as an independent unit for double wire production on spools.
Product Features
Double Wire Forming Machine
High Efficiency
Time Saving
Modern Technology
Design & Operation
| Wire comb Ø (inch) | Pitch p (inch) | Wire thickness Ø (mm) | Aligning paper mm | Speed Loops/min |
|---|---|---|---|---|
| 3/16 | 4:1 | 0,65 | 20 | 3200 |
| 0.25 | 4:1 | 0,65 | 25 | 3200 |
| 3/16 | 3:1 | 0,65 | 20 | 3200 |
| 1/4 | 3:1 | 0,65 | 25 | 3200 |
| 5/16 | 3:1 | 0,8 | 30 | 3200 |
| 3/8 | 3:1 | 0,8 | 35 | 3200 |
| 7/16 | 3:1 | 0,9 | 40 | 3100 |
| 1/2 | 3:1 | 0,9 | 45 | 3000 |
| 9/16 | 3:1 | 1 | 50 | 3000 |
| 5/8 | 3:1 | 1,2 | 60 | 2700 |
| 1/4 | 2:1 | 0,65 | 25 | 2200 |
| 5/16 | 2:1 | 0,8 | 30 | 2200 |
| 3/8 | 2:1 | 0,8 | 35 | 2200 |
| 7/16 | 2:1 | 0,9 | 40 | 2200 |
| 1/2 | 2:1 | 0,9 | 45 | 2200 |
| 9/16 | 2:1 | 1 | 50 | 2200 |
| 5/8 | 2:1 | 1,2 | 60 | 2200 |
| 3/4 | 2:1 | 1,2 | 70 | 2200 |
| 7/8 | 2:1 | 1,2 | 80 | 1900 |
| 1 | 2:1 | 1,2 | 90 | 1900 |
| 1 1/8 | 2:1 | 1,4 | 100 | 1800 |
| 1.25 * | 2:1 | 1,5 | 110 | 1400 |
| 1.5 ** | 2:1 | 1,5 | 120 | 1400 |
Technical modifications without notice.
on request
* our recommendation inline
** only inline possible
